SG-23 Granulator
Introduction
The SG-23 is ideally suited for beside the press or central operation in injection molding, extrusion, and blow molding plants. It has a fully accessible tangential cutting chamber, with clamshell opening hopper and the drop down screen chamber, allows for quick blade replacement. The staggered rotor design minimizes dust, noise levels and is less subject to wear when processing abrasive materials. The SG-23 series has various models to meet a wide range of production applications.
Features
- Compact size with easy access to conveniently clean and maintain
- High quality blades ensure durability
- Staggered blade design reduces friction and lowers energy consumption
- Paddle blades with a blade incline design ensure better cutting outcome while reducing noise
- Blade retainer design ensures quick blade changing without re-adjustment
- Material inlet chute with adjustable angle for easy material feeding from a conveyor belt
- Soundproofing ensures low noise level
- Equipped with electrical current relay, motor overload protector, main power disconnect, emergency stop button, and multiple safety features

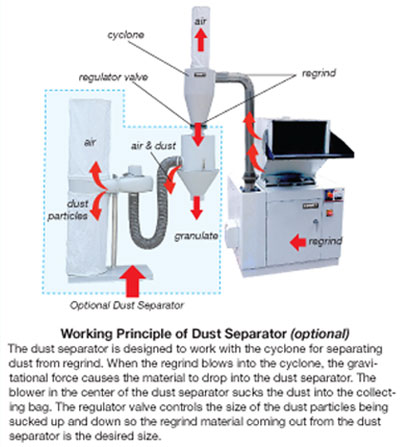

- Cyclone dust separator efficiently removes dust from regrind and eases material collecting
- Dust collecting bag reduces contamination
- Regrind conveying system, standard
- Hardened cutting option for glass or fiber-filled materials
