Introduction

Comet’s CCM screw-type volumetric color feeder is designed for metering free-flowing granulated additives (color concentrate and regrind materials) directly to your extrusion machine. An AC motor is control mounted and can be connected to the tacho of the extruder so a synchronous operation between the extruder and metering unit can be obtained.

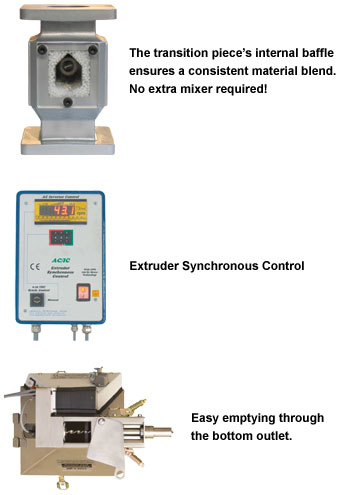

The AC/IC-1100 consists of three main parts; transition piece with a quick disconnect adapter plate, metering house with material hopper, and metering screw sleeve with electrical control box.

Features

• Contamination free stainless steel 10 liter material hopper.
• Standard transition piece mounts two or four AC/IC-1100s.
• 9mm (3/8″) metering screw with spring-loaded steel ball.
• 16mm (5/8″) stainless steel metering sleeve.
• Transition piece with quick disconnect adapter plate.
• Separate LED display with digital setting control and potentiometer.
• AC/IC NP2 transition piece with AC/IC A3/Q-(28) quick disconnect adapter plate.
• 1 x 115V grounded electrical voltage (1-10V external tacho voltage or alternative).
• 10-foot (3m) cable with plug to connect to the metering unit.
• Optional level sensor control.
