CAL-UG Single Vacuum Hopper Loader

CAL-5HP-UG



Download Brochure
Introduction

The CAL-UG series single station vacuum hopper loader are designed specifically for transporting plastic granules over long distances to extruders, injection molding, and blow molding machines. The CAL-UG series is comprised of six models equipped with vacuum blowers from 1 to 15HP.

Features
  • Two stage cyclone and filter technology with large dust collection bin for easy maintenance.
  • Air blow-down allows dust removal via a cyclone dust separator.
  • Microprocessor control is housed away from the main control box to minimize interference and improve ease of operation.
  • Vacuum pump includes safety filter, relief valve and motor control all mounted on industrial frame with leveling feet.
  • Cloth vacuum filter with stainless mesh backing.
  • Vacuum breaking diaphragm valve for quick material discharge.
  • Back-up on E-Prom in case of power failure. Does not require a backup battery.
  • Audible and visual alarms.
Options
  • Air accumulator provides contamination-free processing for recycled material or for contaminants in the resin (for CAL-5HP-UG and above).
  • Two types of filters for powder: bag for 30% powder conveying or plate for 100% powder conveying.
  • Set regrind mix ratio function via an optional CPV-U and couple with a quick mixing valve to enhance the mixing effect.
  • Buzzer alarm.

CAL-UG Options

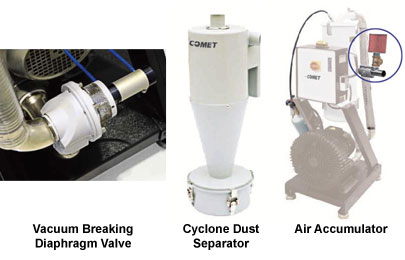

CAL-UG Accessories
